C2.4 130-PH

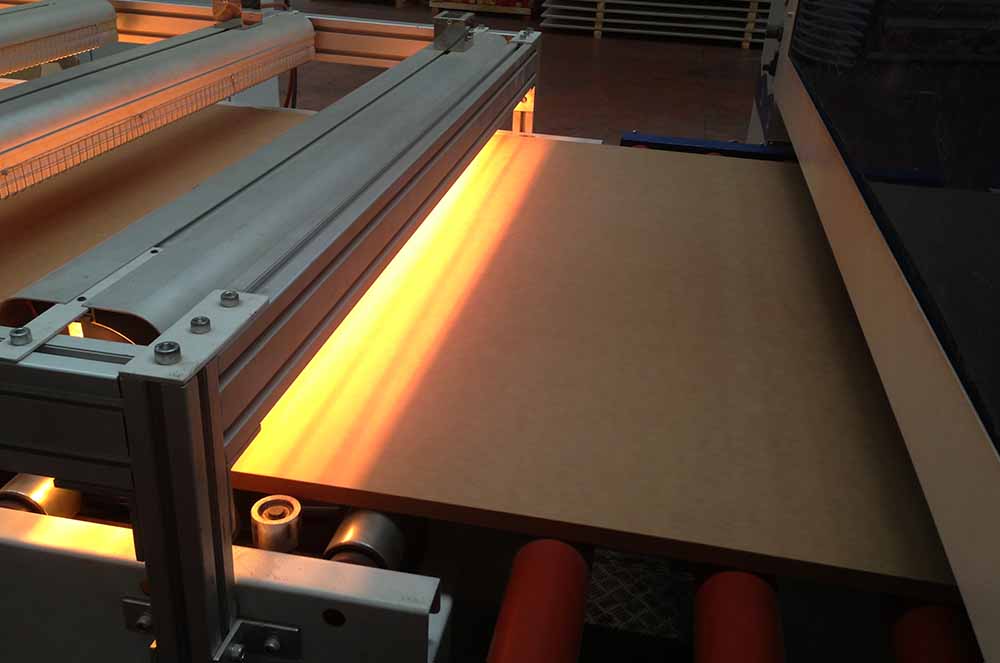

2.4M ANGLED PANEL HEATING CONVEYOR WITH ADJUSTABLE GUIDE SYSTEM

Surface of panels are heated up to 35°C-40°C, with panel heaters mounted on 2.4m high conveyor. For various width, conveyor has adjustable guide system.

TECHNICAL FEATURES
PANEL TYPE MDF, CHIPBOARD, FURNITURE PANEL (SANDED PANELS), XPS AND EPS POLYSTYRENE SANDWICH PANELS
PANEL WIDTH 400 - 1300 mm
PANEL THICKNESS 3 - 60 mm
PANEL HEIGHT 500 - 2800 mm
WORKING SIDE LEFT
WORKING HEIGHT 900 mm
AIR PRESSURE 6 BAR

Contact us for more information about our products and services.
Contact

OPTIONAL EQUIPMENT
fk-130 FK 130
manipulator1 MANIPULATORS
GS-140-R9 GS 140-R
GS-140-D3 RP 140-D
C4.5-ADG-130-HBD-SF-1307 C4.5 ADG 130 HBD + SF 130
